Pre-Filter Cassettes
Select a product

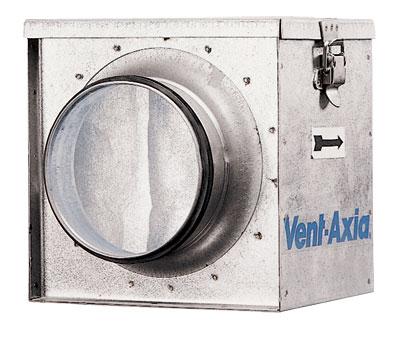

Pre-filter cassettes are available in a range of seven sizes and are tested to EU3 (Eurovent 4/5) 85% arrestance. Housing is in galvanised sheet metal. Spigots are fitted with integral seals. Quick release catches allow access to the filter medium. Replacement pre-filters are available.
PERFORMANCE:
Pre Filter Cassette Resistance Graph:
DIMENSIONS:
Stock Ref No | Øa | b | c | d | e | kg |
10532100A | 100 | 205 | 170 | 120 | 227 | 2 |
10532125A | 125 | 215 | 205 | 140 | 252 | 2 |
10532150A | 150 | 265 | 235 | 155 | 267 | 3 |
10532200A | 200 | 315 | 275 | 180 | 302 | 3.5 |
10532250A | 250 | 365 | 325 | 230 | 352 | 5.5 |
10532315A | 315 | 425 | 390 | 330 | 452 | 7 |
10532400A | 400 | 515 | 495 | 455 | 487 | 10.5 |
Raadpleeg de tab Downloads voor technische informatie
ESTIMATED RUNNING COSTS
Calculate estimated running costs for this product using the tool below.
For average costs*, leave the default values in place or enter your own figures in the boxes to recalculate.
Where a product has multi speeds, a typical installation has been used for the below calculations. *Running cost does not include the use of the heater on the heater model
Based on the inputted figures, estimated running costs would be:
Overview
Pre-filter cassettes are available in a range of seven sizes and are tested to EU3 (Eurovent 4/5) 85% arrestance. Housing is in galvanised sheet metal. Spigots are fitted with integral seals. Quick release catches allow access to the filter medium. Replacement pre-filters are available.
Technical
PERFORMANCE:
Pre Filter Cassette Resistance Graph:
DIMENSIONS:
Stock Ref No | Øa | b | c | d | e | kg |
10532100A | 100 | 205 | 170 | 120 | 227 | 2 |
10532125A | 125 | 215 | 205 | 140 | 252 | 2 |
10532150A | 150 | 265 | 235 | 155 | 267 | 3 |
10532200A | 200 | 315 | 275 | 180 | 302 | 3.5 |
10532250A | 250 | 365 | 325 | 230 | 352 | 5.5 |
10532315A | 315 | 425 | 390 | 330 | 452 | 7 |
10532400A | 400 | 515 | 495 | 455 | 487 | 10.5 |
